Schlüter®-KERDI-LINE-VARIO – flexible linear drainage
Discover the next generation of linear drainage: Schlüter-KERDI-LINE-VARIO combines the efficiency of KERDI drainage technology with elegant profiles in Schlüter designs.
The innovative system comprises the drainage unit KERDI-LINE-VARIO-H, an adapter with integrated waterproofing collar and a wave shaped drain with built-in odour trap that can be rotated by 360 degrees.
The versatile drainage system is combined with our elegant minimalist design profiles in the design options COVE and WAVE.
Why VARIO?
- The rotatable body of the drainage unit enables optimum installation flexibility.
- The drainage profiles can be individually cut to size at the construction site to create a precise fit for on-site conditions.
- The profiles in the design options COVE and WAVE elegantly reflect current trends in ceramic tile design.
Schlüter®-KERDI-LINE-VARIO
The profile of linear drainage
Many classic designs owe their success to the concept of "Less is more". The true strength of these products is their focus on function, without ornamental accessories.
From that perspective, KERDI-LINE-VARIO is destined to become a classic. The profiles only have a single purpose – to channel the water where it belongs.
Our profiles offer a number of design choices:
- design options COVE and WAVE
- materials stainless steel and aluminium
- and for the latter, eight different TRENDLINE finishes.
Schlüter®-KERDI-LINE-VARIO COVE

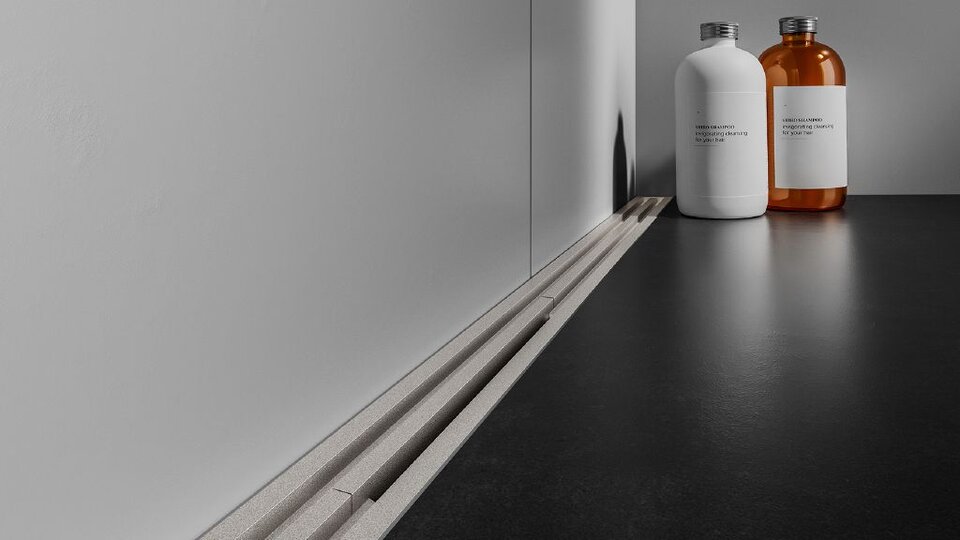

Schlüter-KERDI-LINE-VARIO COVE is available in lengths of 120 cm and 180 cm. The cove-shaped drainage profile, which can be individually cut to size, is designed for use with the Schlüter-KERDI-LINE-VARIO-H drain.
A visible intermediate opening 8 mm wide and 140 mm long allows water to flow into the drain. The cove-shaped design creates linear drainage in floor level showers with an especially slim and unobtrusive drainage profile.
The profile comes with two end caps and is available in brushed stainless steel V4A or powder coated aluminium with a textured TRENDLINE finish.
Schlüter®-KERDI-LINE-VARIO WAVE

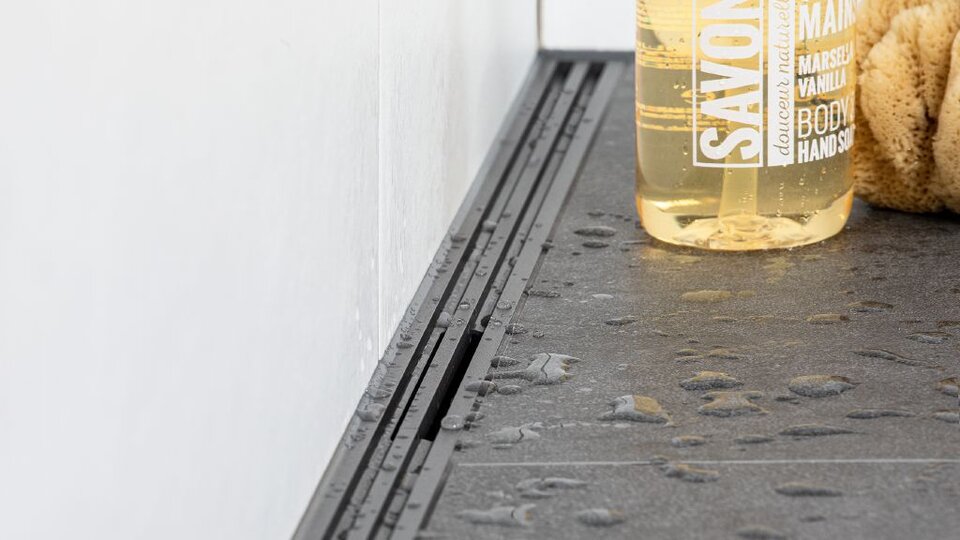

As the name implies, Schlüter-KERDI-LINE-VARIO WAVE is a W shaped drainage profile for use with the Schlüter-KERDI-LINE-VARIO-H drain. This profile can be cut to size at both ends and is also available in lengths of 120 cm and 180 cm.
The water drains through an intermediate 140 mm drain opening, which comes in different widths depending on the selected product version. WAVE 34 (made of aluminium) has the slimmest opening at 14 mm, while WAVE 42 is considerably wider at 24 mm (aluminium version) or 25 mm (stainless steel version).
The profile comes with two end caps and is also available in brushed stainless steel V4A or powder coated aluminium with a textured TRENDLINE finish.
Our COVE and WAVE drainage profiles in both lengths (120 cm and 180 cm) can be cut to size with millimetre precision.

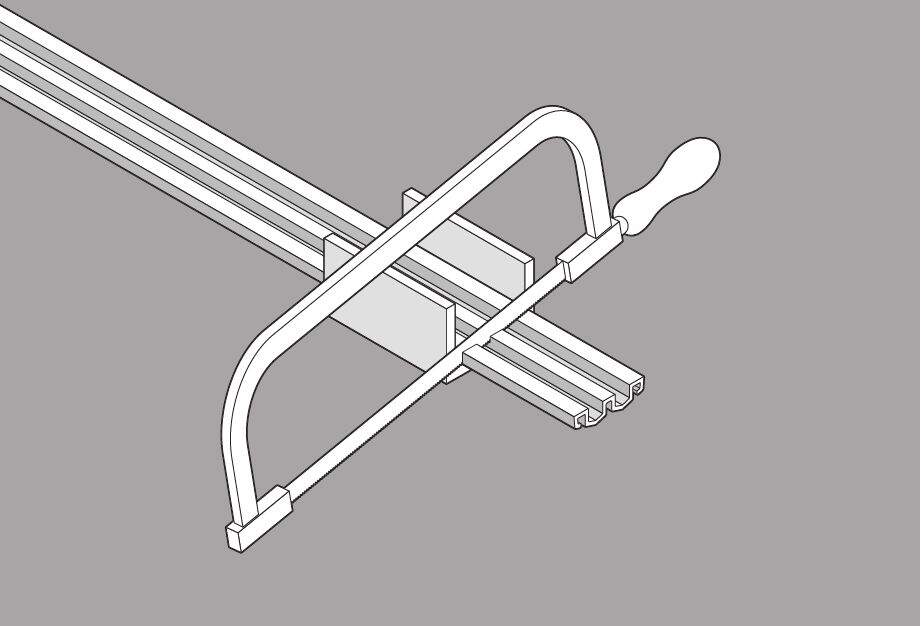

Use the cutting gauge included in the set to quickly cut the profile to size with a handsaw to precisely match the conditions at the construction site.
The two supplied end caps create a neat, visually appealing finish.
You can also adjust the profile installation height to the thickness of the floor covering by using tile adhesive.
VARIO drainage profiles
All advantages at a glance:
- slim, unobtrusive drainage profile
- elegant designs

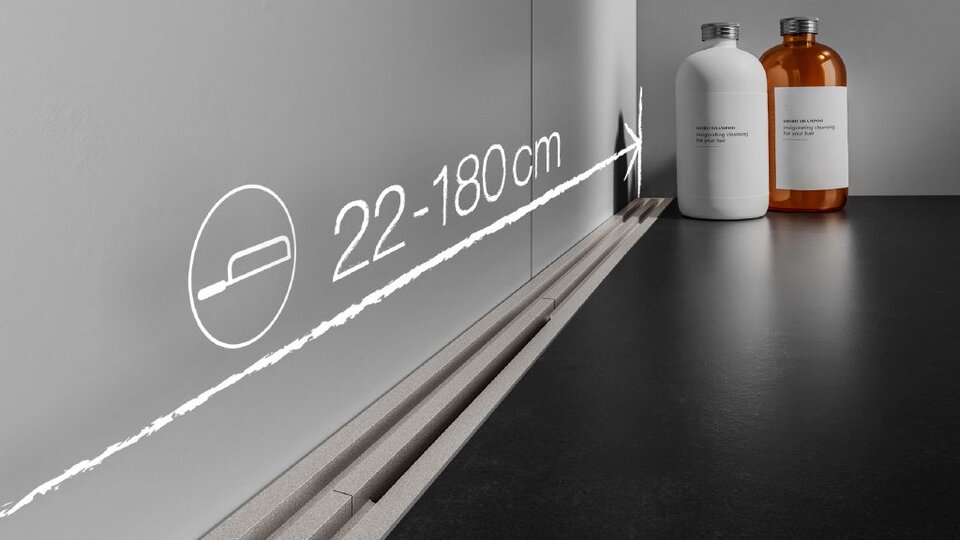

- height-adjustable, individual sizing option (22 - 180 cm)
- 2 lengths (120 cm and 180 cm)
- simple to install
High-quality materials:
- Brushed stainless steel / TRENDLINE powder coated aluminium
- matching the latest tiling trends
Always the right tone:
TRENDLINE textured coating

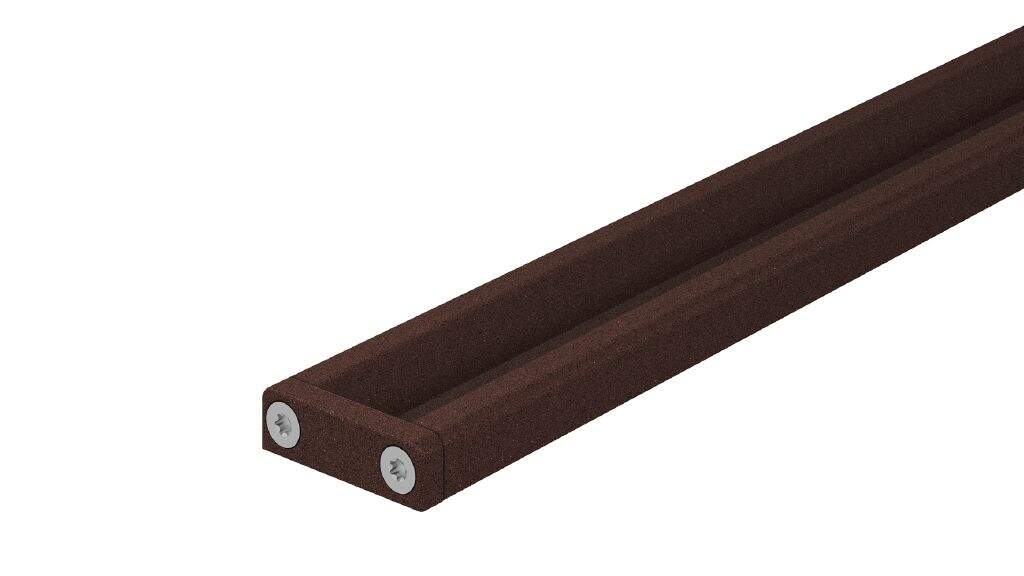

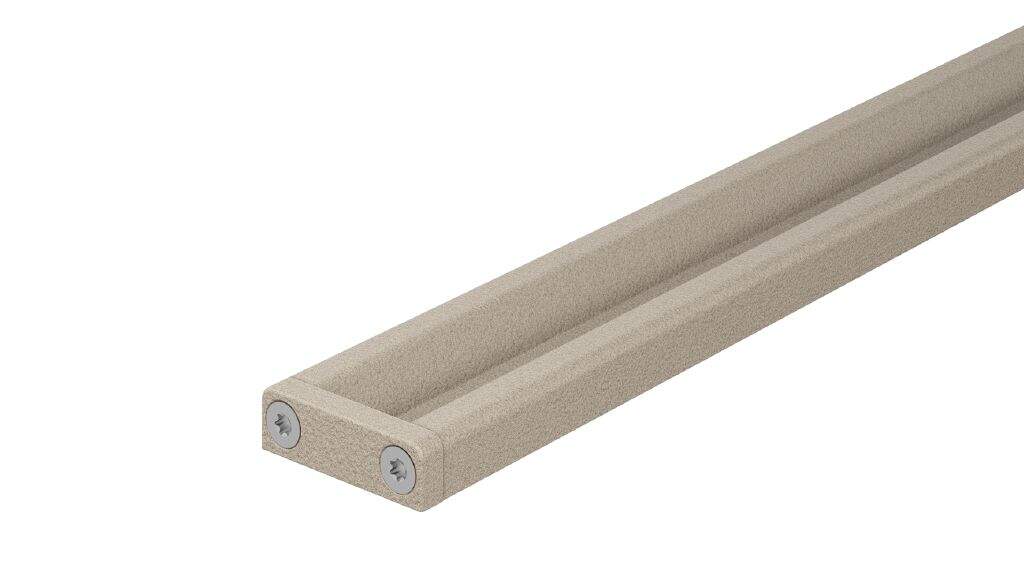

Our Schlüter®-TRENDLINE colour series is sure to include the perfect profile to match current colour styles. Choose from eight high-quality textured coatings in delicate colour gradations.
Of course, you can always resort to time-honoured classics as well: both drainage profiles are also available in brushed stainless steel V4A.
-

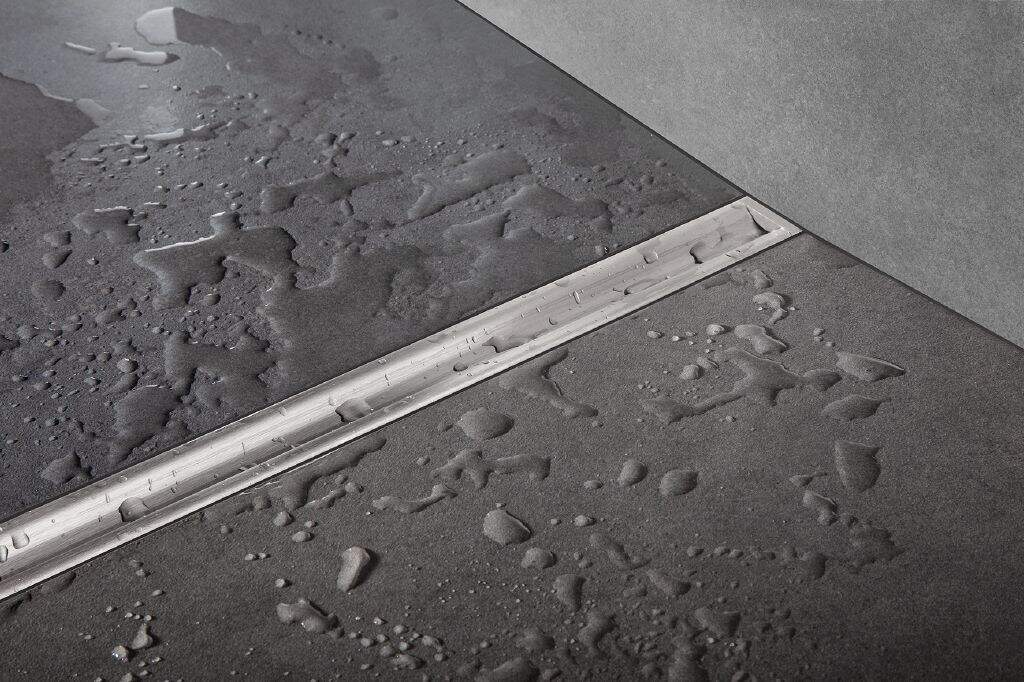

brushed stainless steel
-

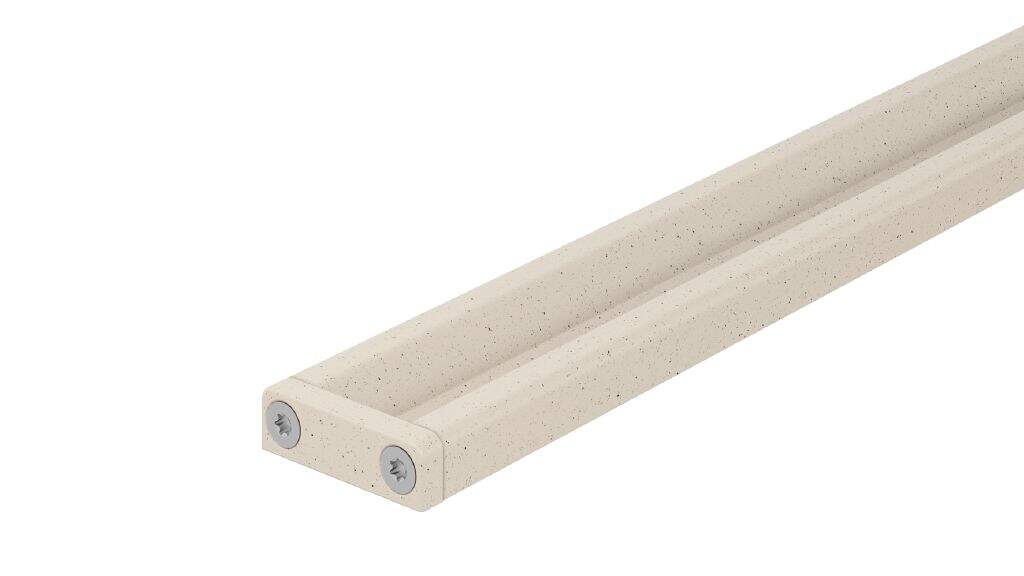

aluminium, textured natural ivory
aluminium, textured natural ivory
-
aluminium, textured natural cream
aluminium, textured natural cream
-
aluminium, textured natural beige grey
aluminium, textured natural beige grey
-

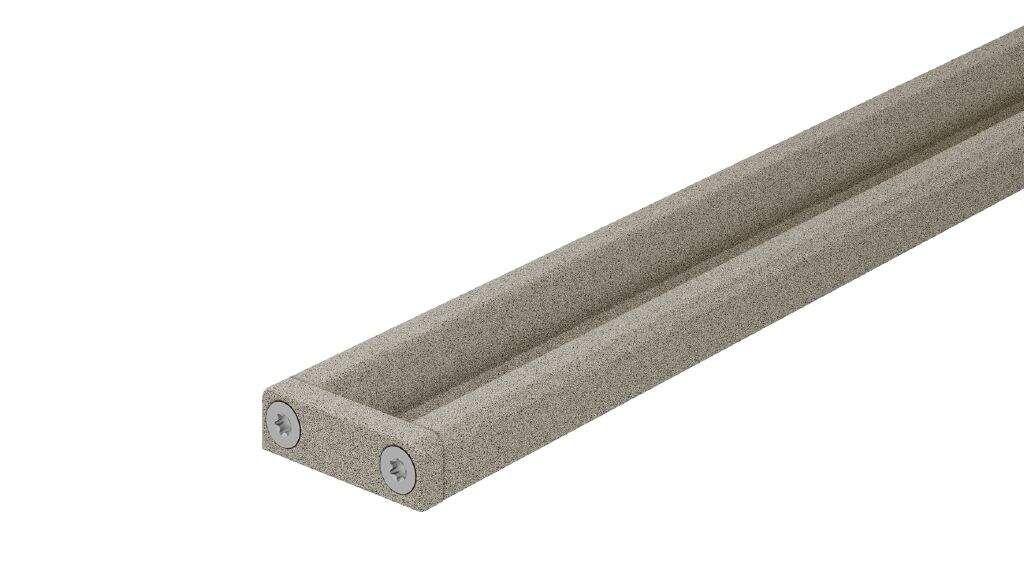

aluminium, textured natural stone grey
aluminium, textured natural stone grey
-
aluminium, textured natural bronze
aluminium, textured natural bronze
-

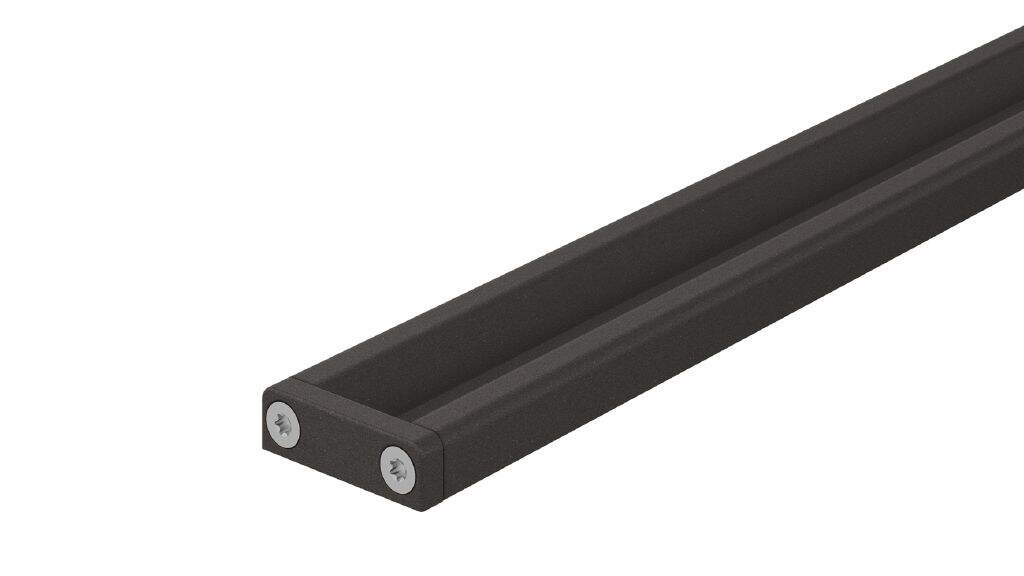

aluminium, textured natural dark anthracite
aluminium, textured natural dark anthracite
-

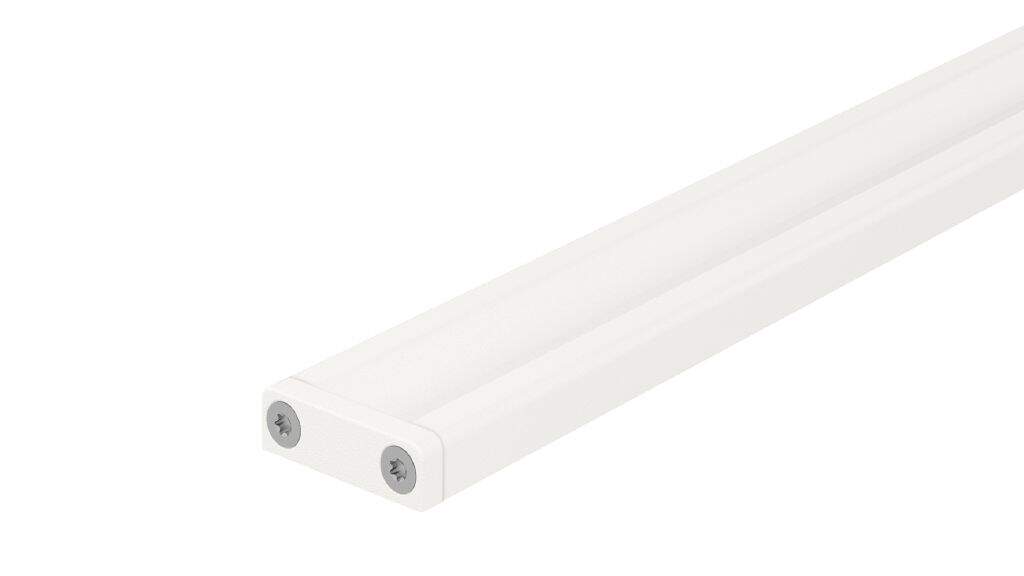

aluminium, matte brilliant white
aluminium, matte brilliant white
-

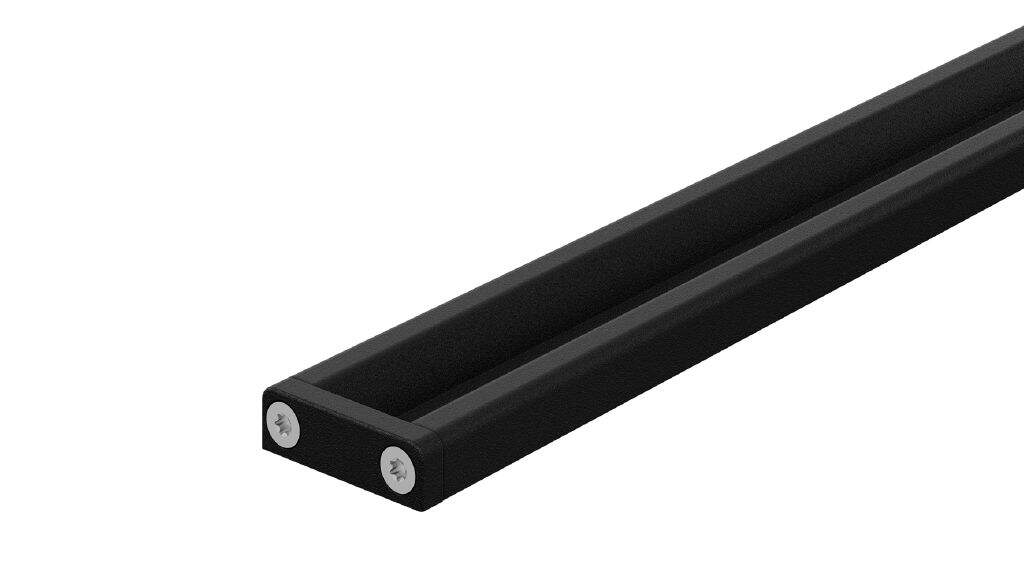

aluminium, matte graphite black
aluminium, matte graphite black
Schlüter®-KERDI-LINE-VARIO in WAVE design
-

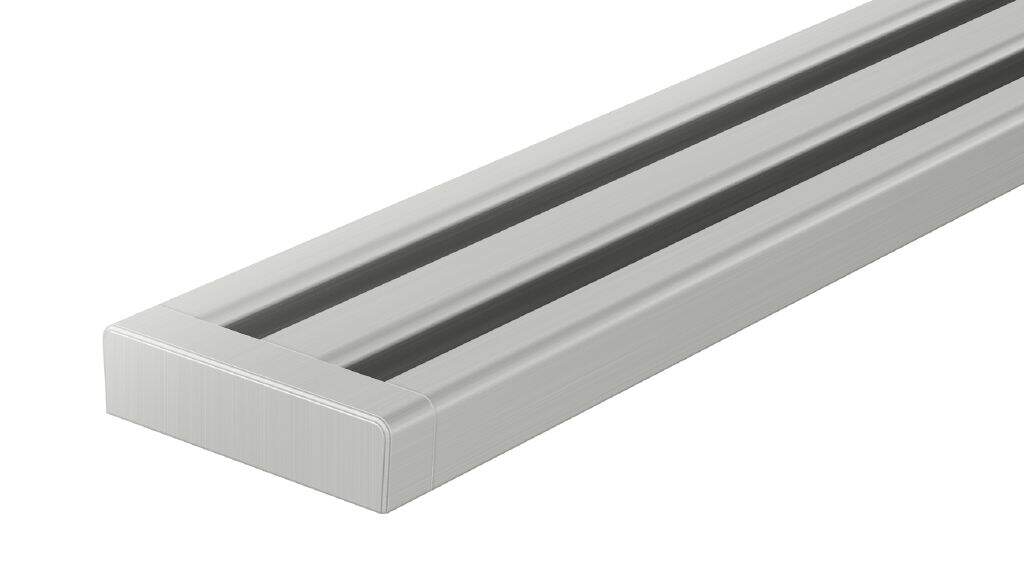

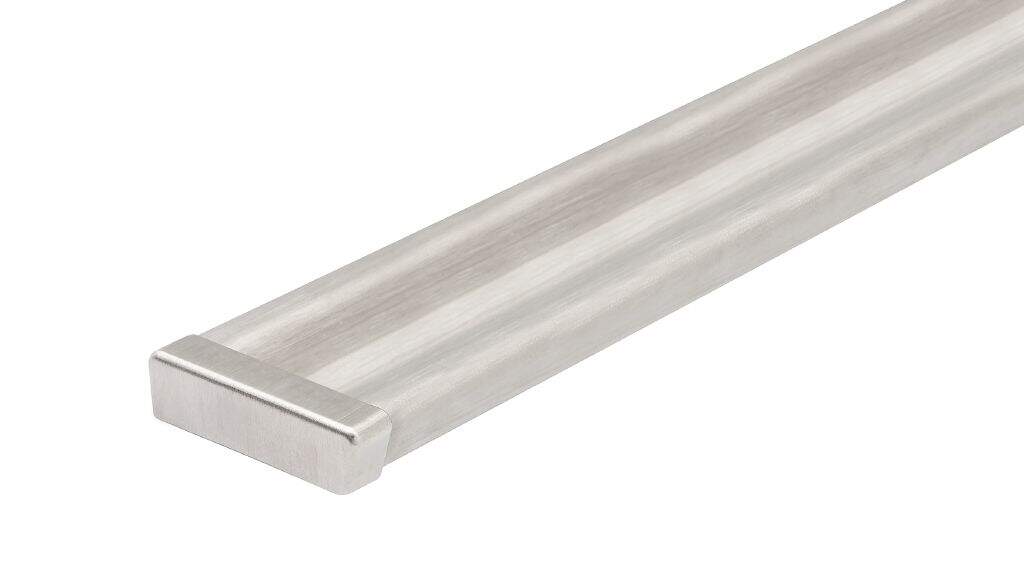

brushed stainless steel
-

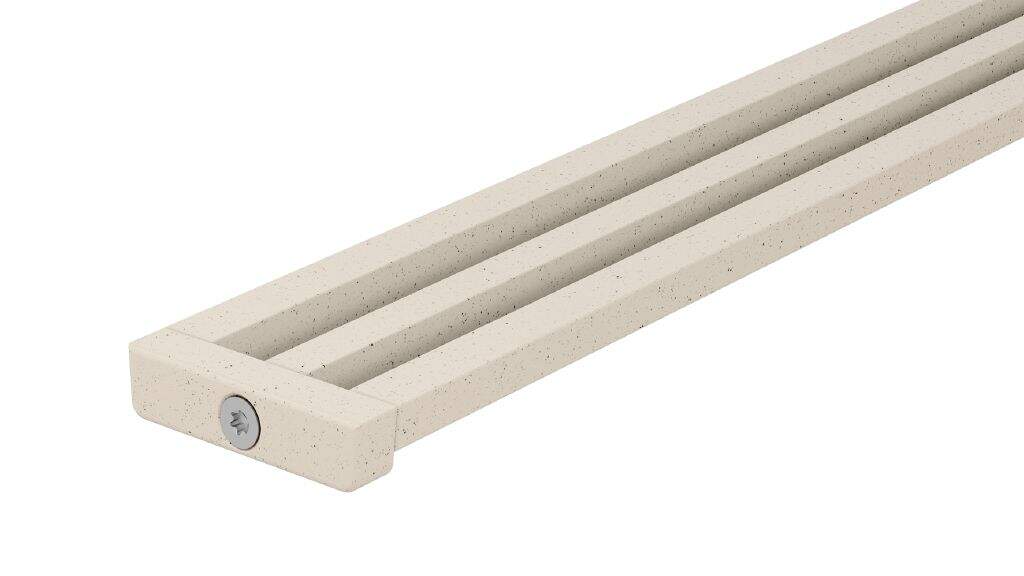

aluminium, textured natural ivory
aluminium, textured natural ivory
-

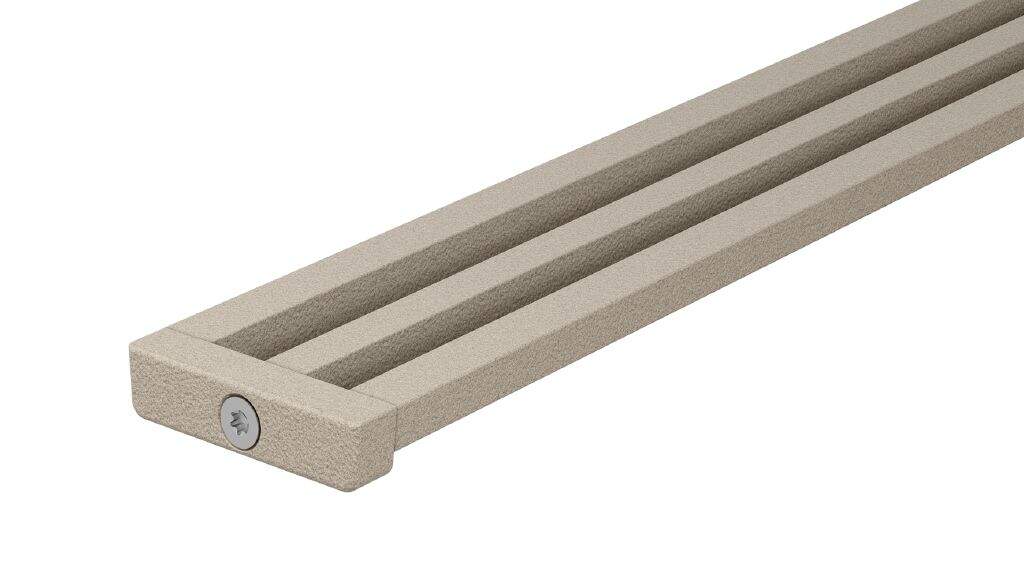

aluminium, textured natural cream
aluminium, textured natural cream
-

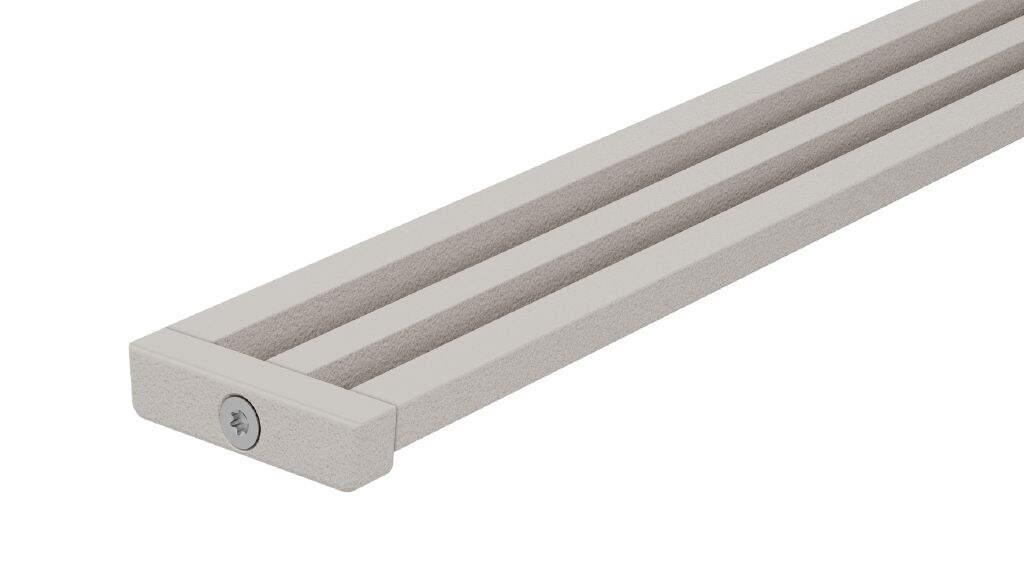

aluminium, textured natural beige grey
aluminium, textured natural beige grey
-
aluminium, textured natural stone grey
aluminium, textured natural stone grey
-
aluminium, textured natural bronze
aluminium, textured natural bronze
-

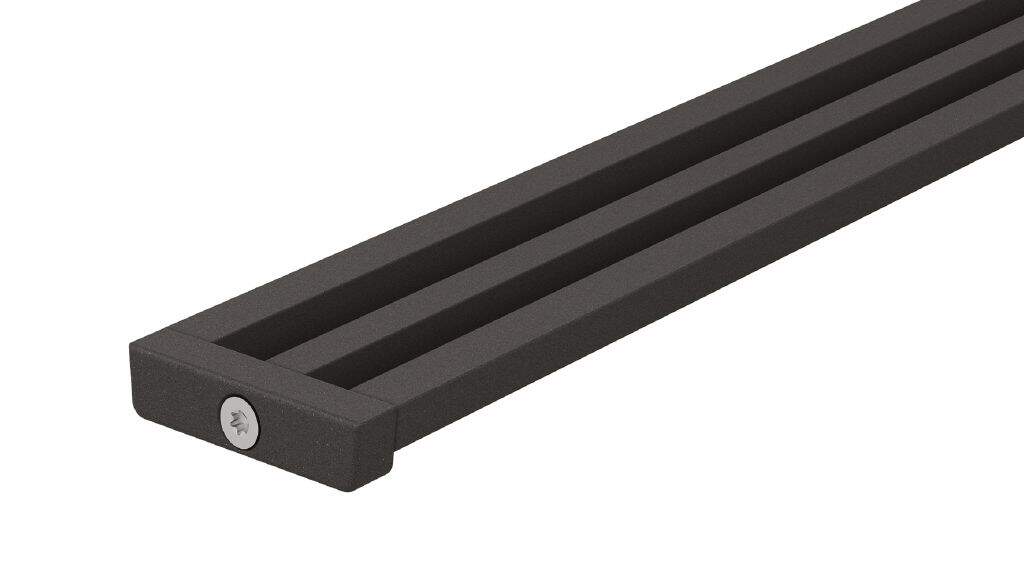

aluminium, textured natural dark anthracite
aluminium, textured natural dark anthracite
-

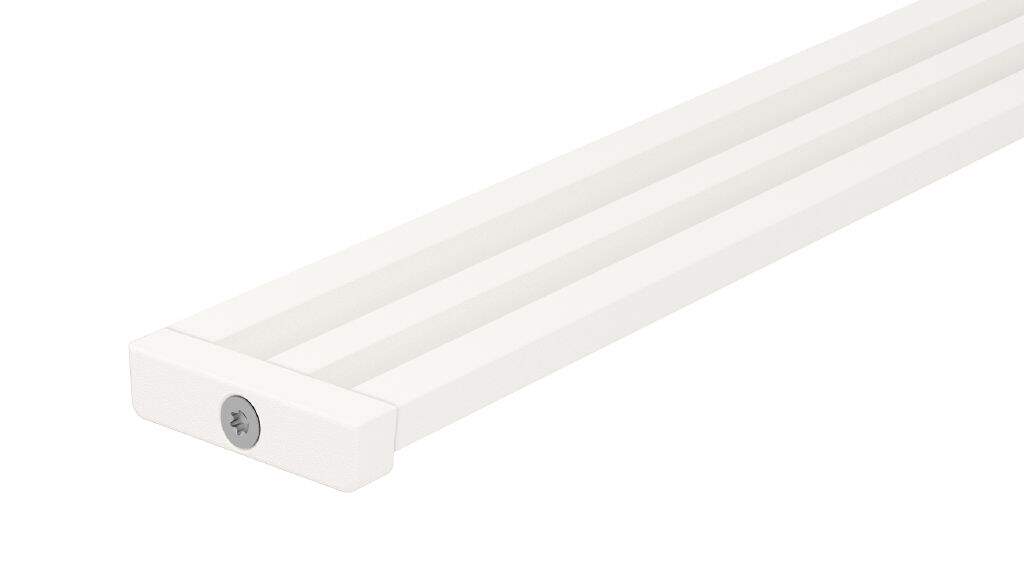

aluminium, matte brilliant white
aluminium, matte brilliant white
-
aluminium, matte graphite black
aluminium, matte graphite black
Convincing design: Our Schlüter-KERDI-LINE-VARIO system has been recognised with the renowned Red Dot Award for Product Design in 2021 in the Bathroom and Sanitary Equipment category. The award went to the combination of the KERDI-LINE-VARIO-H drain with the WAVE drainage profile.
Schlüter®-KERDI-LINE-VARIO-H
KERDI-LINE has achieved a new dimension of flexibility.
Schlüter-Systems is well known for its slim drainage solutions – this system is the intelligent next generation of our proven technology.

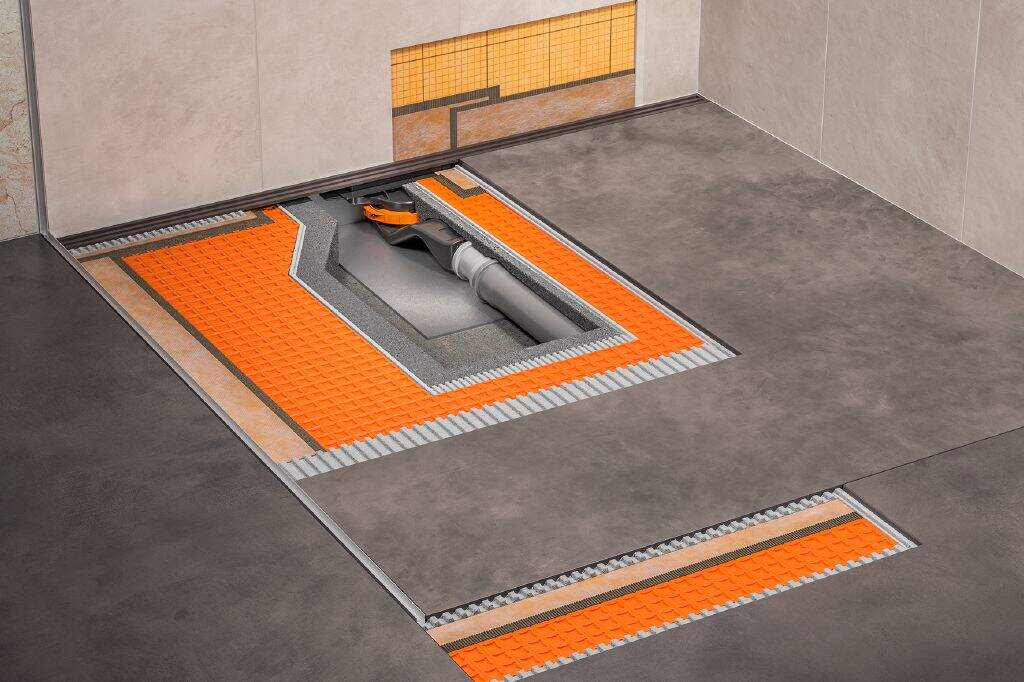

Our highly efficient wave shaped drain has been combined with a new drain adapter and an integrated waterproofing collar. Together with our precisely fitting design profiles, you can create flexible linear drainage in floor level showers with unobtrusive drainage channels.
Schlüter®-KERDI-LINE-VARIO-H
The drain set comprises a rotatable drain body and a drain adapter.
The horizontal KERDI-LINE-VARIO-H drain unit comprises a drain body and a drain adapter.
The drain body consists of a wave-shaped drain that is rotatable by 360° and has a built-in odour trap.
Schlüter®-KERDI-LINE-VARIO-H
drain adapter with integrated KERDI-FLEX collar

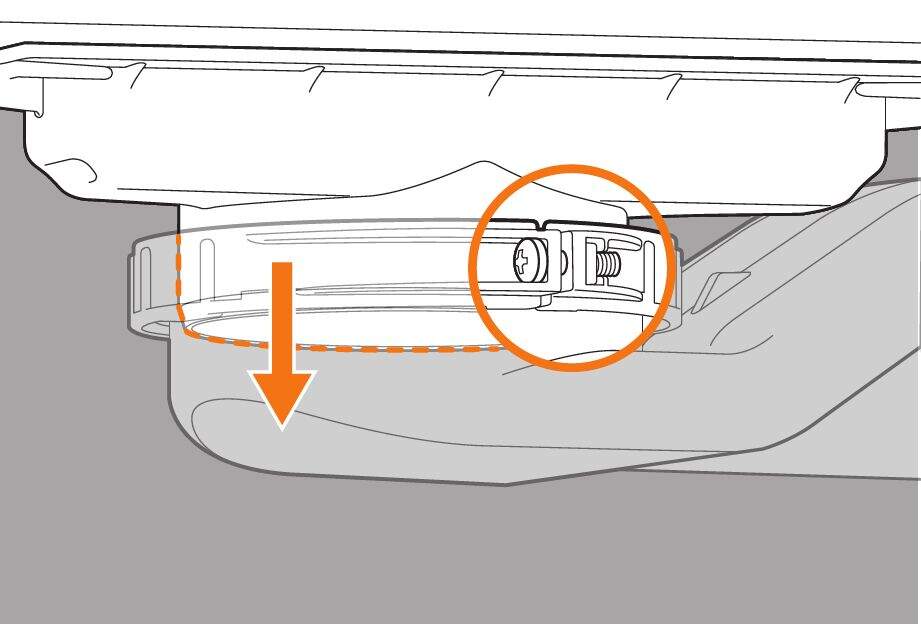

The drain adapter with integrated Schlüter®-KERDI-FLEX collar comes fully inserted into the sealed wave shaped drain and is secured with a clamping ring.

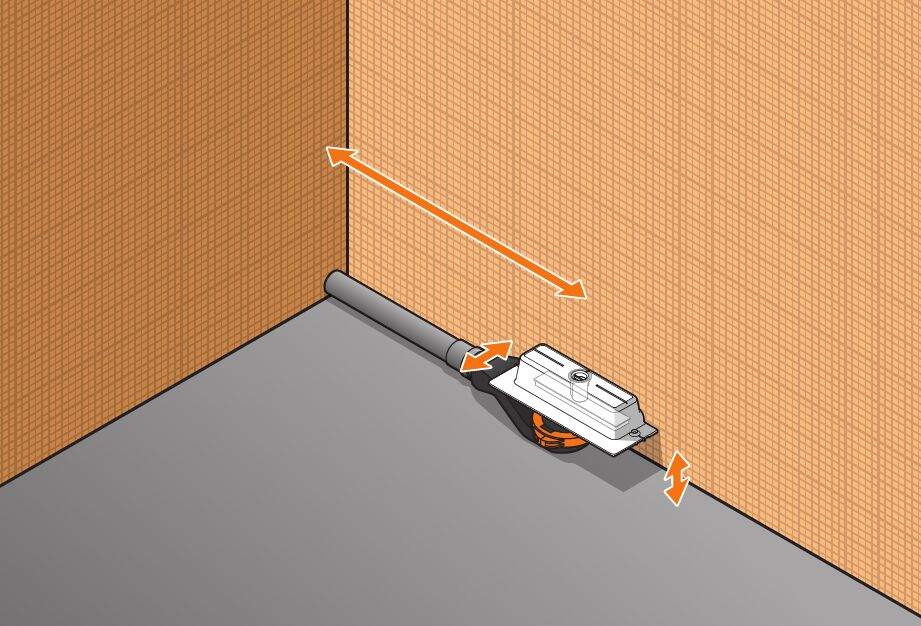

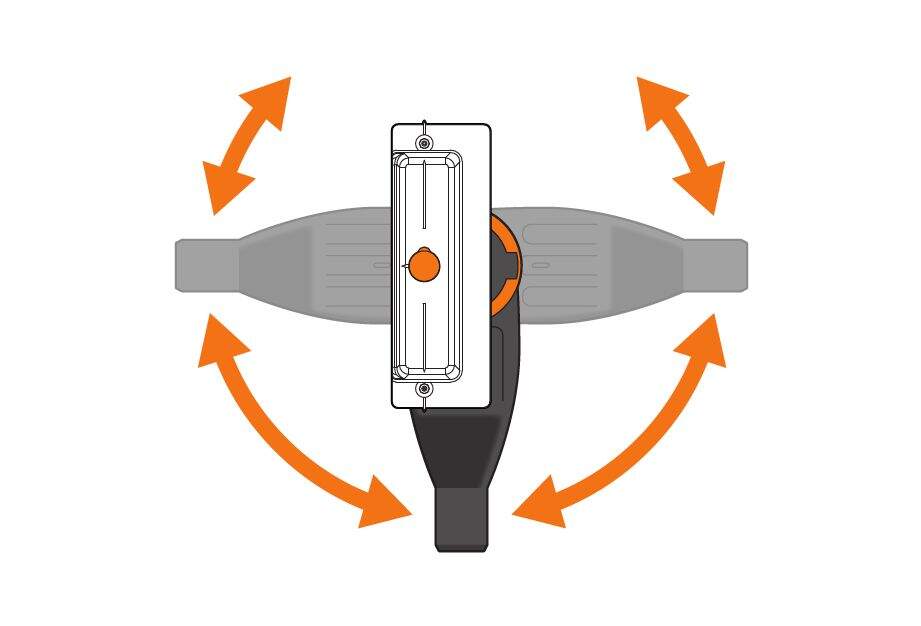

The wave shaped drain can be rotated by 360° by loosening the clamping ring, which makes the linear drainage adaptable to any connection configuration in the existing building.
Schlüter®-KERDI-LINE-VARIO-H
Drain body with built-in odour trap and efficient wave shaped drain

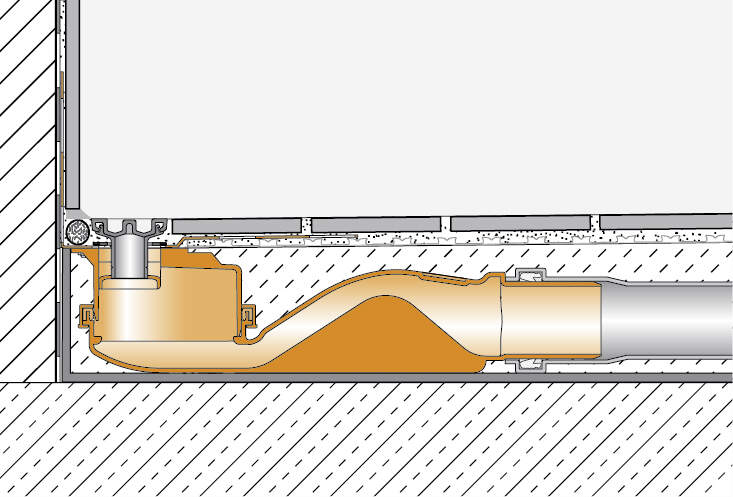

The universal linear drainage system KERDI-LINE-VARIO can be installed in an intermediate position or against a wall.
The wave shaped design achieves a high flow rate within the floor drain, which results in a self-cleaning effect.
VARIO drain technology
All advantages at a glance:
Schlüter®-KERDI-LINE-VARIO-H
Linear drainage for versatile installation
- slim drain body
- wave shaped drain, rotatable by 360°
- built-in odour trap
- high flow rate in the floor drain
- self-cleaning effect
- drain adapter with integrated KERDI-FLEX collar
- simple seal check with opening in protective lid
- multi-functional protective lid: protective function, screed levelling aid, spirit level, material markings (bidirectional) and water inspection nozzle
Convenient: sets and accessories
The hair trap Schlüter®-KERDI-LINE-VARIO-S is an especially useful accessory.
KERDI-LINE-VARIO comes with matching accessories to eliminate all installation worries. A frame extension for use with thicker tile coverings is available in two different widths. A matching hair trap can also be ordered for the WAVE 42 profile series.
Speaking of "great fit": All products of the KERDI-LINE-VARIO sets H40 and H50 are a perfectly coordinated match. They not only contain a drain adapter and an elasticated waterproofing collar, but also come with a helpful sound insulation component.
Please refer to our supplementary price list 2022 for information about accessories and all set components.
KERDI-LINE-VARIO
Click here to download additional information:
Versatile design options
KERDI-LINE-VARIO is ideal for combination with:
Are you planning to build a floor level shower with linear drainage, but aren't sure of the material quantities you will need?
Schlüter-Systems has the perfect tool to help: Our drainage configuration tool automatically compiles a material list for your bathroom tiling project. Simply enter the dimensions of your new shower and select the profile design.
You can download our Excel configurator tool here:
Excel configuration tool (xlsb, MB)
