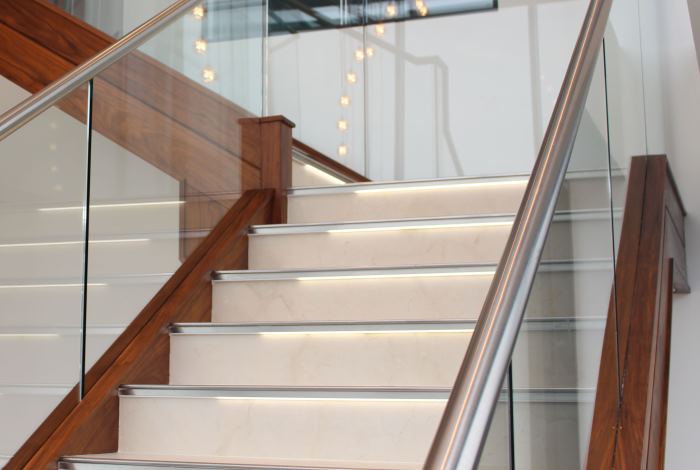

Illuminating staircases

Staircase sets

Schlüter-LIPROTEC can also be used to illuminate staircases – the easy way: our staircase sets comprise all components you need to install lighting on each step.

There are two different sets for your individual requirements:

Schlüter-LIPROTEC-PB 15 contains everything to illuminate a staircase. It is suitable to install LED lighting for up to 15 steps with a width of up to 100 or 150 cm on each step.

The combined set Schlüter-LIPROTEC-PB 1 contains one profile and accessories for creating LED lighting for a single step. The maximum width of stair lighting is also 100 or 150 cm. By the way, the set is also ideally suited to expand Schlüter-LIPROTEC-PB 15: you can illuminate up to 18 steps with a single electrical connection.



Content of Schlüter-LIPROTEC-PB 15/100

(for 15 steps, lighting up to a width of 100 cm)

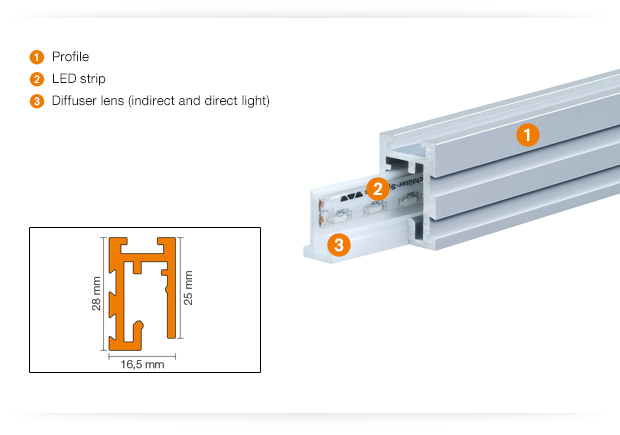

  • 15 x profiles LT PB, 100 cm wide, incl. locking plate, cable bushing, 15 end caps
  • 15 x diffuser lenses LT PB D, 100 cm wide, incl. LED module, neutral/cool white 4500 Kelvin, coupling system
  • 14 x connection cables, 70 cm long, plug/plug system, 2 x 0.32 mm² (AWG22)
  • 1 x supply cable, 500 cm long, single-sided plug system, 2 x 0.32 mm² (AWG22)
  • 1 power supply 24 V, 75 W
  • 1 x installation/mounting instruction

Content of Schlüter-LIPROTEC-PB 15/150

(for 15 steps, lighting up to a width of 150 cm)

  • 15 x profiles LT PB, 150 cm wide, incl. locking plate, cable bushing, 15 end caps
  • 15 x diffuser lenses LT PB D, 150 cm wide, incl. LED module, neutral white 4500 Kelvin, coupling system
  • 14 x connection cables, 70 cm long, plug/plug system, 2 x 0.32 mm² (AWG22)
  • 1 x supply cable, 500 cm long, single-sided plug system, 2 x 0.32 mm² (AWG22)
  • 1 power supply 24 V, 75 W
  • 1 x installation/mounting instruction



Content of Schlüter-LIPROTEC-PB 1

(for 1 step, lighting up to a width of 100 or 150 cm)

  • 1 x LT PB profile, 100/150 cm wide, incl. locking plate, cable bushing, end cap
  • 1 x diffuser lens LT PB D, 100/150 cm wide, incl. LED module, neutral/cool white 4500 Kelvin, coupling system
  • 1 x connection cable, 70 cm long, plug/plug system, 2 x 0.32 mm² (AWG22)
  • 1 x installation/mounting instruction

Please note! For use with indoor applications only! The sets are designed for straight steps and cannot be formed to curves.
