Plug & play accessories

The Schlüter plug & play system significantly facilitates the combination of individual components. An overview of the available accessories can be found here.

A matching adapter cable to connect the products of the LIPROTEC-EASY and LIPROTEC-PRO series is listed under LIPROTEC-PRO.



Power supplies

Power supplies convert the mains voltage to the 24 V required by our LED strips. They are easy to install and available in different wattages from 30 to 100 W for LED strips in lengths of up to 6/18 linear metres. They feature a connection cable with a European plug as well as plug & play connectors for our Schlüter-LIPROTEC-EASY system.

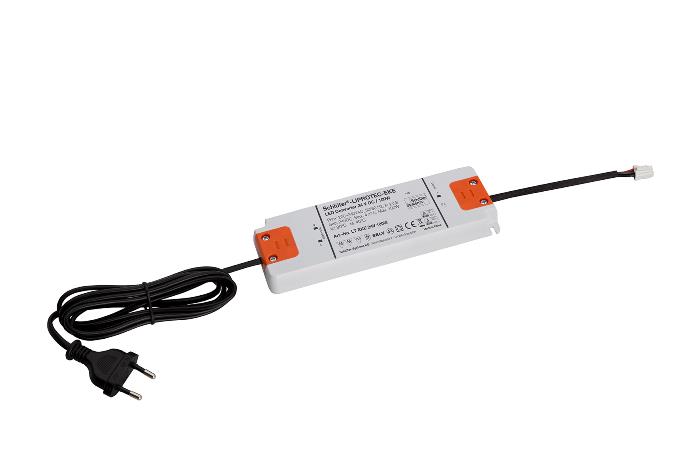

Schlüter-LIPROTEC-PEKE

Schlüter-LIPROTEC-PEKE is a plug & play power supply 24 V DC with a European plug and a plug & play connector.

Available wattages (max. Watt*)

  • 30 (27)
  • 50 (45)
  • 75 (67,5)
  • 100 (90)

*A safety reserve has to be taken into account when selecting the power supply unit (see maximum load of the corresponding power supply unit).



Cable/distributor

Schlüter-LIPROTEC-PZK

Schlüter-LIPROTEC-PZK is a plug & play cable for connecting the power supply unit of the Bluetooth receiver and the plug & play LED module.

Available lengths (in cm):

  • 80
  • 150
  • 300
  • 500

Note: Maximum combined cable lengths should not exceed 10 m.



Schlüter-LIPROTEC-PZV

Schlüter-LIPROTEC-PZV is a plug & play distributor for connecting 2 or 4 additional plug & play LED modules to an installation.

Available connections:

  • 2
  • 4



Further accessories

Schlüter-LIPROTEC-PES

Schlüter-LIPROTEC-PES are end caps for LIPROTEC-EASY LED tubes.

Available heights:

  • 12 mm
  • 15 mm

Schlüter-LIPROTEC-PZH

Schlüter-LIPROTEC-PZH is a hollow wall junction box with a pre-attached Schlüter-KERDI waterproofing collar for use in tile coverings. It forms a hollow space for plug connections that enables the reversible design of plug & play LED modules and is attached with a suitable tile adhesive or with Schlüter-KERDI-COLL.

Schlüter-PROCUT-PSF

Schlüter-PROCUT is a special cutting tool for precisely cutting LED strips to size. To maintain IP-compliant waterproofing when cutting the LED strip, the LED strip must be cut at a 45° angle and closed with the end cap and sealing adhesive included in the set.
