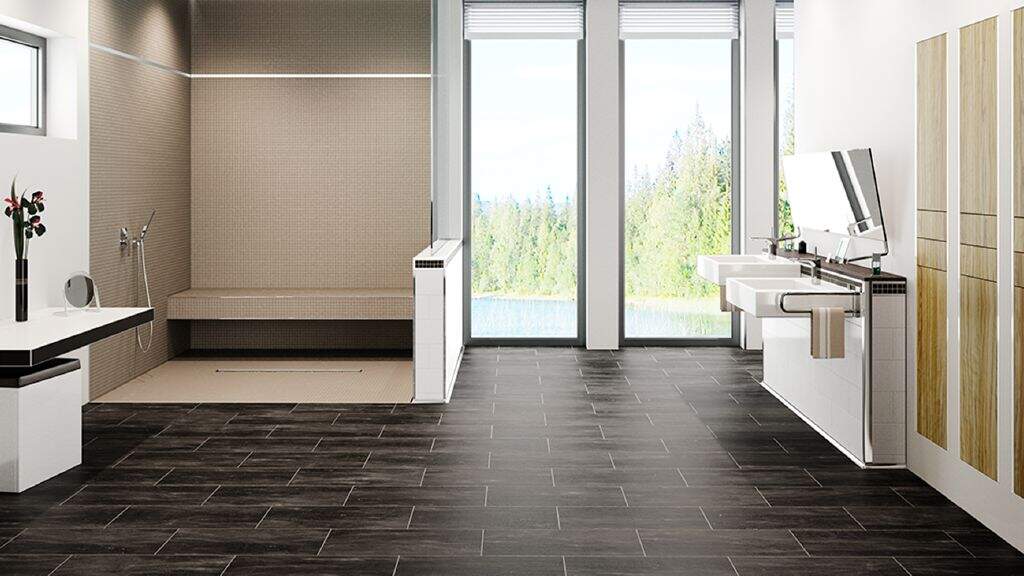

• Warme Fliesen, sogar in der Dusche: die elektrische Boden- und Wandheizung DITRA-HEAT-E macht's möglich!

    Schlüter®-
    DITRA-HEAT-E

    Electric floor heating system for tiles and natural stone

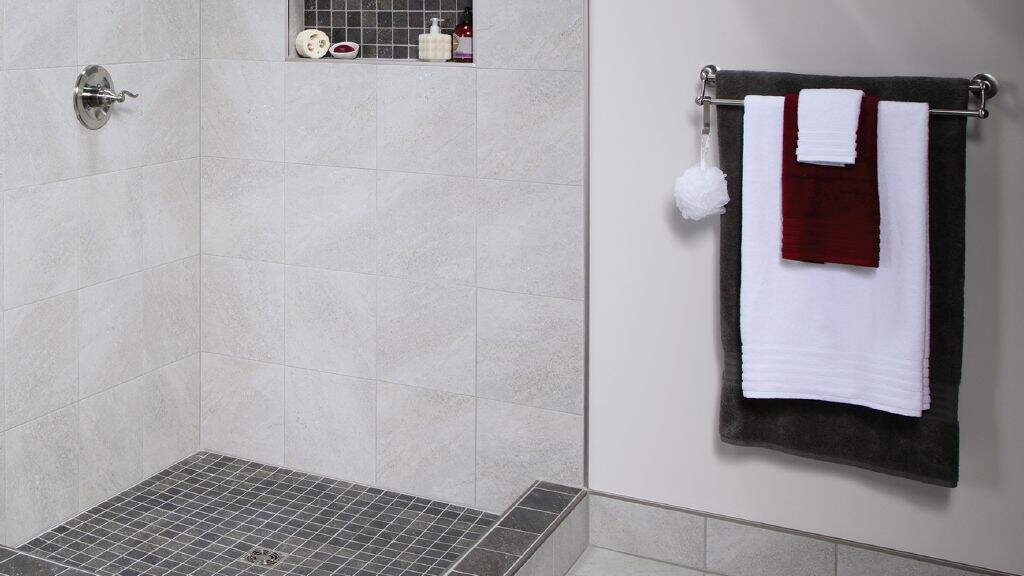

  • Das Dünnschicht-System eignet sich perfekt für Sanierungen und Renovierungen im Altbau.

    Ideal for renovations thanks to thin-layer technology

  • Die bewährte DITRA Entkopplungsmatte bildet die Grundlage für DITRA-HEAT-E.

    Schlüter®-DITRA-HEAT-E uncouples with proven DITRA technology

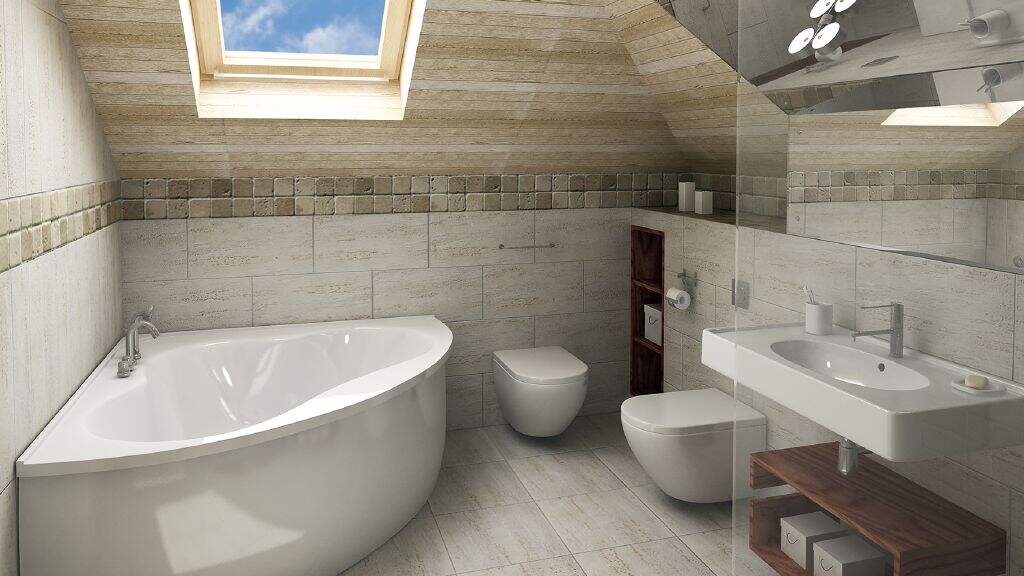

  • Die elektrische Fußbodenheizung eignet sich für Holzboden-Konstruktionen und andere kritische Untergründe.

    Schlüter®-DITRA-HEAT-E helps create warm tiles even on critical substrates

  • DITRA-HEAT-E kann mehr - das System ist als Verbundabdichtung zertifizeirt und für den Einsatz in Feuchträumen zugelassen.

    The system is certified for bonded waterproofing with the national technical approval (abP) required in Germany

  • Zielgenau Wärme in Rekordzeit mit dem DITRA-HEAT-E Elektro-Heizungssystem.

    Schlüter®-DITRA-HEAT-DUO – faster heat-up response

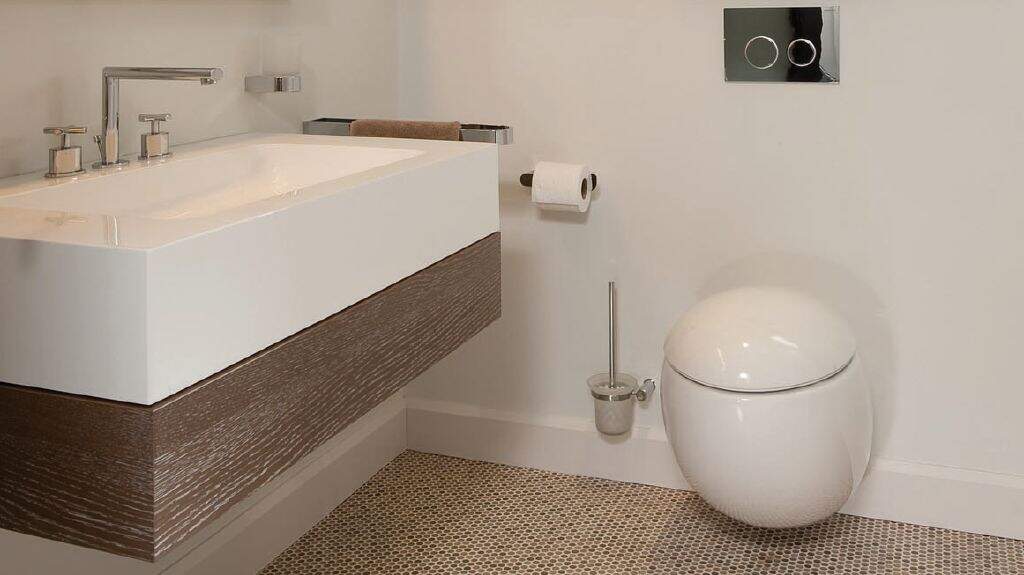

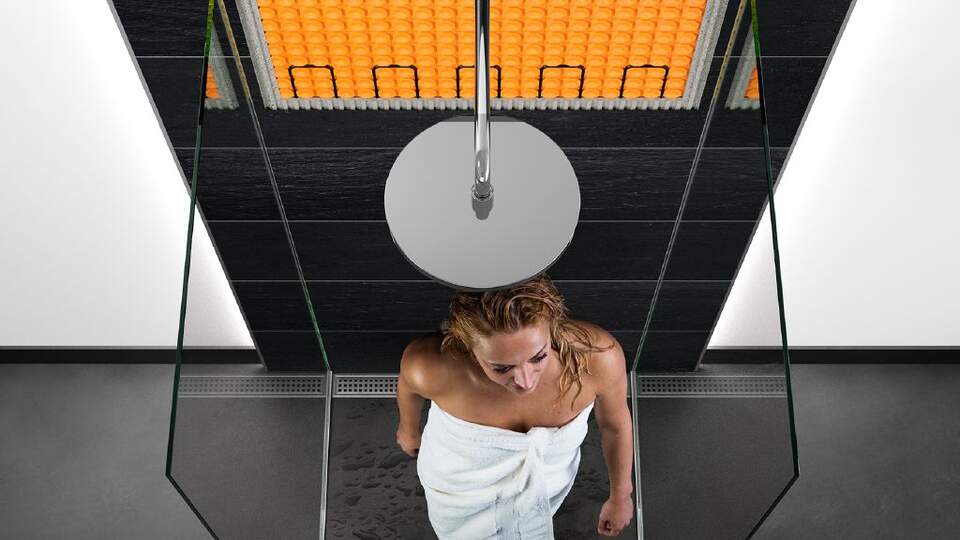

  • Kein Bibbern mehr im Bad: Die elektrische Wandheizung Schlüter-DITRA-HEAT-E sorgt für wohlige Wärme.

    Schlüter®-DITRA-HEAT-E creates cosy heat

  • Sorgt für angenehmes Klima und beugt Schimmelbildung vor: die elektrische Flächenheizung Schlüter-DITRA-HEAT-E.

    Even in the wall

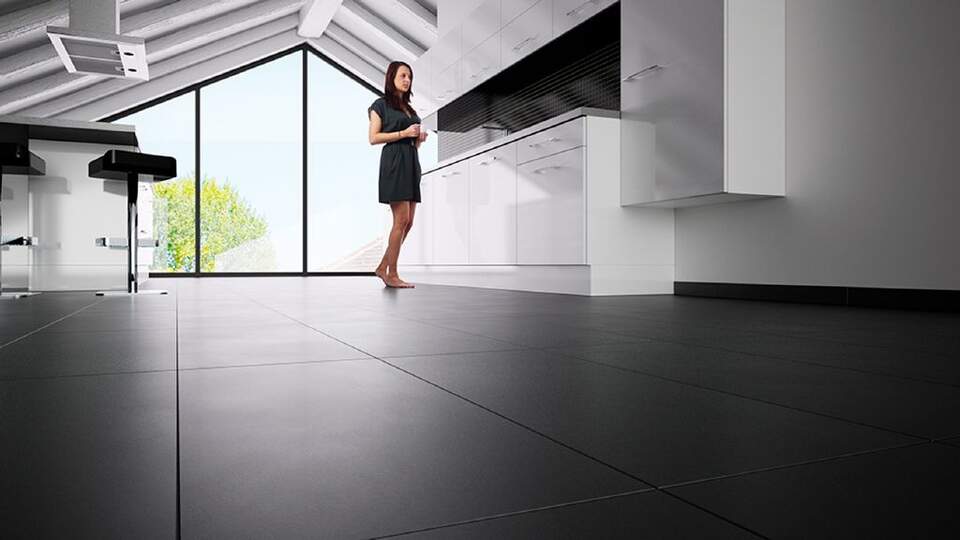

  • DITRA-HEAT-E ist individuell verlegbar – für ganze Räume oder einzelne Barfuß-Zonen.

    Heated zones can be individually designed

Schlüter®-DITRA-HEAT-E

Electric floor and wall heating system

Schlüter-DITRA-HEAT-E ist eine flache Elektro-Heizung für Wand und Boden.

Schlüter-DITRA-HEAT-E is an electric floor heating system that can also be used to heat walls – the perfect complement to our water-based Schlüter-BEKOTEC-THERM system. The electric floor and wall heating system is an ultra-slim all-round talent. Together, the mat and heating wires are only 5.5 mm thick, making them suitable for retrofitting and use in new construction projects alike.

Benefits of Schlüter®-DITRA-HEAT-E



  • Pleasant room climate
    thanks to gentle radiated heat.
  • Precise controls
    The digital thermostats installed in every room enable convenient and precisely timed setting of your preferred temperatures.
  • Cost-effective
    to purchase, install and maintain.
  • Durable and maintenance-free
    Electric floor heating systems are highly durable and do not wear out, making the system virtually maintenance-free.
  • Easy to retrofit
    Quick and easy to install.
  • Low assembly height
    Uncoupling mat with heating cables is only 5.5 mm thick.
  • Convenient complete sets
    Schlüter-Systems offers convenient sets comprising all required system components for common room configurations.
  • Suitable for allergy sufferers
    The room is heated gently and evenly, which avoids stirring up allergenic substances.



Quick and flexible to install

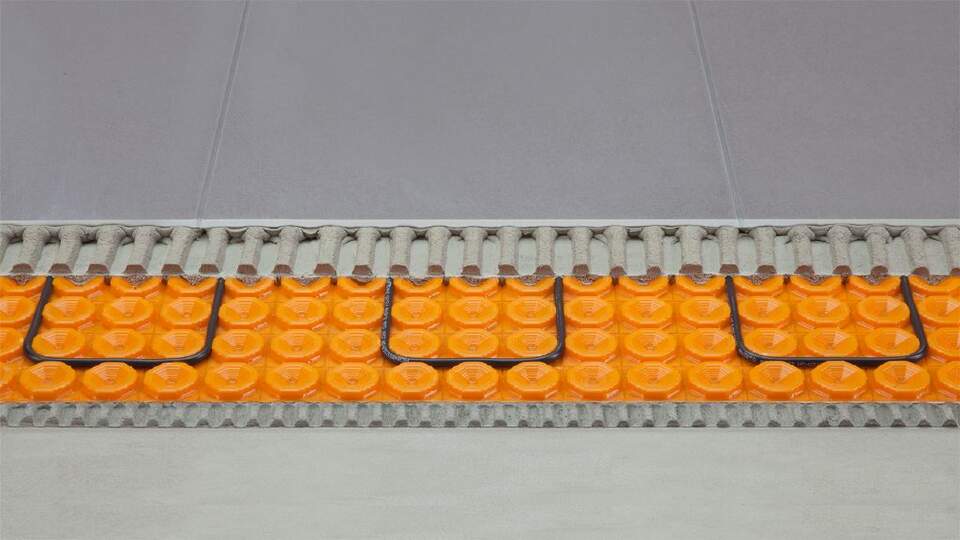

Structure and function

Die elektrische Noppensystem-Heizung lässt sich einfach und unkompliziert verlegen.

The heating wires are embedded directly in the uncoupling mat with the tile adhesive to ensure quick and efficient heat transfer. The thin-set system with its many flexible installation options offers optimal freedom for selecting the areas to be heated and guarantees precise heating and uncoupling. The low assembly height of Schlüter®-DITRA-HEAT makes it a perfect choice for retrofitting in existing structures.

How is Schlüter®-DITRA-HEAT-E used?

Schlüter-DITRA-HEAT-E is designed for installation in walls and floors, where it is used for targeted surface heating. What's more, Schlüter-DITRA-HEAT-E offers additional functions that are indispensable for high-quality tile and stone coverings. Thus, the system protects floors against permeating moisture, prevents the transfer of cracks into the covering, and guarantees direct load transfer as well as neutralising uncoupling to keep your wall and floor coverings beautiful for a long time. Due to the crack-bridging properties of the DITRA-HEAT uncoupling mat, the heating system is suitable for use with critical substrates such as wood structures and green screeds.

Certified waterproofing assembly. Approved for wet rooms.

Choose verified quality: Schlüter-DITRA-HEAT-E is also certified for bonded waterproofing with the national technical approval (abP) required in Germany. This additionally integrated function offers maximum reliability for contractors when installing the intelligent system: DITRA-HEAT-E, which features national technical approval with certificate no. P-66821401.201 for installation area A, as well as the bonded uncoupling mat Schlüter-DITRA 25 are suitable for use in bathrooms and other wet rooms.

Electric floor and wall heating system for many applications:

  • Barefoot zones

    Heating tile floors in living rooms and bathrooms to complement the primary heating system.

    Barefoot zones

    Heating tile floors in living rooms and bathrooms to complement the primary heating system.

  • Vacation homes

    Temporary heating of structures that are only used occasionally.

    Vacation homes

    Temporary heating of structures that are only used occasionally.

  • DITRA-HEAT-E ist ideal zum vorübergehenden Beheizen, etwa von Passivhäusern.

    Passive homes

    Building with very low heating energy demand (passive energy homes) as a backup heating system.

    DITRA-HEAT-E ist ideal zum vorübergehenden Beheizen, etwa von Passivhäusern.

    Passive homes

    Building with very low heating energy demand (passive energy homes) as a backup heating system.

  • In kleinen Räumen spielt die elektrische Wandheizung ihre Stärken aus.

    Small rooms

    Heating rooms with a small blueprint with an additional radiant wall panel heater.

    In kleinen Räumen spielt die elektrische Wandheizung ihre Stärken aus.

    Small rooms

    Heating rooms with a small blueprint with an additional radiant wall panel heater.

  • Targeted

    Precise heating of wall zones, for example in the shower or to dry towels.

    Targeted

    Precise heating of wall zones, for example in the shower or to dry towels.

  • Prevention

    Preventive heating of exterior walls from the inside to prevent mould, for example as a wall heating system in shower areas.

    Prevention

    Preventive heating of exterior walls from the inside to prevent mould, for example as a wall heating system in shower areas.

  • Comfort

    Comfort zones in resting areas, bathrooms or spas.

    Comfort

    Comfort zones in resting areas, bathrooms or spas.

  • No change to the floor

    Heating of small spaces where no changes to the floor are desired.

    No change to the floor

    Heating of small spaces where no changes to the floor are desired.

Overview of system components

Your electric floor heating system, as a complete set

With Schlüter-DITRA-HEAT-E, Schlüter-Systems has developed a unique thin-layer heating system for the easy, customised and targeted heating of specific surfaces.

In contrast to conventional heating mats, the cables of the DITRA-HEAT-E system are individually installed in the uncoupling mat. Due to the use of thin-set technology, the electric floor heating system also works in places where warm-water floor heating systems are not an option for structural reasons.

A true multi-talent, which creates warm tiles wherever a system assembly in a minimal height is needed. The patented DITRA technology also guarantees reliable uncoupling and a crack-free floor. You can look forward to pleasantly warm tiles wherever YOU would like heat. Including on critical substrates, such as wooden floors!

Especially slim and responsive

Schlüter-DITRA-HEAT-E has become synonymous with electric floor heating systems worldwide: tradesmen love the easy installation, designers are inspired by its flexible uses, and homeowners enjoy the pleasant and responsive warmth of their floors.

Here is how heating with a thin-set system works:

Schlüter-DITRA-HEAT-E is comprised of an uncoupling mat and a heating cable (joint assembly height only 5.5 mm), which are combined directly on site. This results in an integrated heating mat. The areas to be heated can be individually defined to match any floor blueprint. DITRA-HEAT-E is the perfect choice for retrofitting and renovations.

Convenient complete sets

Your retailer offers a selection of convenient complete sets for common room sizes. The sets include the following components:



  • Schlüter®-DITRA-HEAT-MA uncoupling mats
  • Schlüter®-DITRA-HEAT-E-HK heating cables
  • Schlüter®-DITRA-HEAT-E-R thermostat



The sets comprise all required components to install your floor and wall heating system in one convenient package.

Product information (PDF)

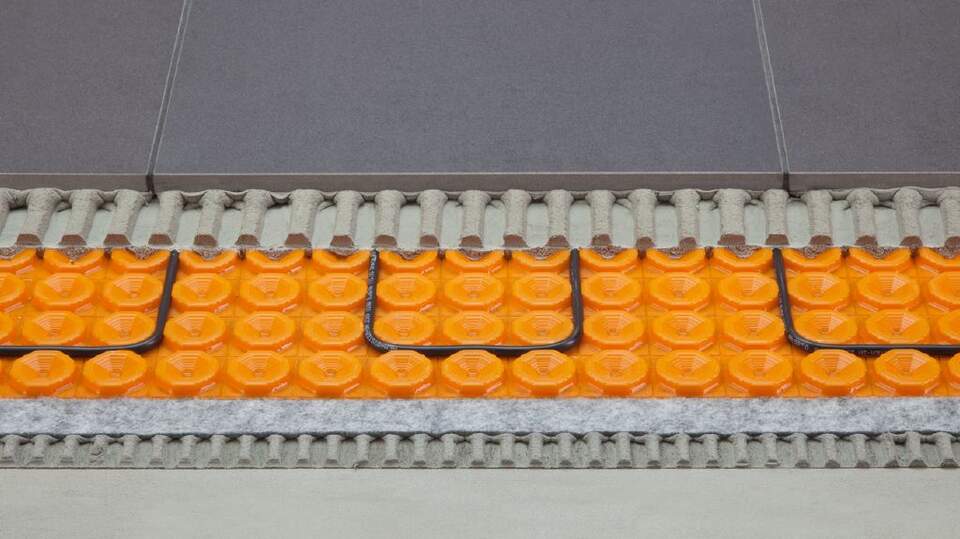

Faster heat response, additional impact sound insulation

Schlüter®-DITRA-HEAT-DUO

Schnellere Heizwirkung, zusätzliche Trittschalldämmung: Schlüter®-DITRA-HEAT-DUO

The new Schlüter-DITRA-HEAT-DUO is the right solution wherever heat is needed quickly and for a short time. For example, a highly responsive system with great efficiency is needed in a bathroom, which is only used at certain hours in the morning and at night. The system creates warm areas in defined comfort zones on short notice, for example in front of the vanity.

The additional, 2 mm fleece acts as a thermal barrier: the bulk (over 80%) of the heat is channeled directly toward the top into the floor covering in the heat-up phase, which makes the tangible heat effect much faster and energy-efficient.

Up to 13 dB impact sound insulation

The fleece component of the uncoupling mat not only improves the heat-up response, but also ensures a significant reduction in impact sound transfer: An independent testing Institute has confirmed an impact sound reduction of up to 13 dB for the uncoupling mat.

Our table shows when which system makes most sense:



Schlüter®-DITRA-HEAT

Schlüter®-DITRA-HEAT-DUO

over a conventional floor heating system

x

-

over a ceramic thermal comfort floor

x

-

over wooden structures

x

x

over unheated screed

-

x

over a weight-bearing previous covering (unheated)

-

x

8 reasons to opt for DITRA-HEAT-E

  • 1.Cosy warmth!

    Pleasant room climate thanks to gentle radiated heat

  • 2.On point!

    Precisely controllable thanks to digital thermostat. Room for room. Hour for hour.

  • 3.Cost-effective!

    To purchase, install and maintain

  • 4.Durable!

    Sturdy with an extremely high life expectancy

  • 5.Comfortable!

    Perfect for retrofitting, e.g. in renovation projects, with quick and easy installation

  • 6.Easy!

    Easy to install due to heating cables installed in the uncoupling mat and tile installation in the thin-set method – no time-consuming spackling is required, as in the case of heating mats.

  • 7.Convenient!

    Complete sets that offer all necessary system components for common room configurations

  • 8.Hypo-allergenic!

    Suitable for allergy sufferers because the radiated heat does not stir up allergens
